Adjust-a-Trak Penetration-free Panel Forming System™
VIEWER NOTE: This Website is optimized for viewing with Internet Explorer at a monitor resolution of 1024 x 728 px.
INTRODUCTION
The MILCO Adjust-a-Trak Penetration-free Panel Forming System™ enables tilt-up contractors to eliminate the need to use penetrating devices such as nails and bolts to secure edge forms, cutouts, chamfer and reveal to floor slabs.
The "MILCO System" for reducing surface penetrations includes MILCO Tilt-Up & Precast Spray Adhesive, which is manufactured for MILCO by 3M™ Company, and MILCO Adjust-a-Trak™ PVC forms combined with specific application methods and the utilization of complementary construction products to assure optimum results in a wide variety of climatic conditions.
THE ADJUST-A-TRAK™ ADVANTAGE
The MILCO Adjust-a-Trak Penetration-free Forming System™ offers tilt-up contractors many advantages...
♦ ELIMINATES FLOOR SURFACE DAMAGE / NO MORE SPALLING — The MILCO ADJUST-A-TRAK™ System does away with the need for hole patching and other post-tilt-up floor repairs to the slab surface.
♦ EASY TO APPLY - SAVES TIME & KEEPS YOUR EXPENSES DOWN — An experienced 3-man crew can install 25 to 30 panels per day. Compared to the nail-down method, overall installation time and expense for tilt-up, including labor, is reduced by 40 to 60 percent!
♦ SAVE ON INVENTORY — The MILCO ADJUST-A-TRAK™ System allows contractors to adjust their panel height within the form itself, rather than inventory a variety of panel heights. For example, a 6"-height panel form can be infinitely adjusted up to 8"-height simply by inserting a pre-cut spacer into the MILCO EdgeTrak™ or CommonTrak™ beneath the the panel form.
♦ DON'T THROW AWAY THE SHORT PIECES — Typically, contractors discard remnants when they need to cut panel form to length. With MILCO EdgeTrak™ and CommonTrak™ on the job, contractors may insert any combination of short and long lengths of panel form.
♦ IT WON'T LET GO UNTIL YOU WANT IT TO — MILCO Tilt-up & Precast Spray Adhesive will stay on the job until your work is finished, come rain or shine! Keeps your forms and strips and forms securely attached in cold, wet, humid or hot, dry weather for 30 days or more.
 |
♦ APPLIES ON COLD OR HOT, DRY OR WET SURFACES — MILCO Tilt-up & Precast Spray Adhesive is not materially affected by moisture or humidity and it is suitable for most wet or dry-weather installations where slab temperatures can range from 32º F to 150º F.
♦ GIVE YOUR WORK A TRULY PROFESSIONAL APPEARANCE — Complex reveal designs are a breeze with MILCO's Tilt-Up & Precast Spray Adhesive! The finished appearance of the decorative trim work is precise with well-defined edges.

♦ REMOVE YOUR FORMS PRIOR TO PANEL LIFTING — After the pour, easily remove the edge forms and common forms for re-use BEFORE lifting the panels. Removed forms can be "leap-frogged" to the next set of panels, thus dramatically reducing the total amount of panel form and blocking material needed for each project.
♦ EASILY REMOVE REVEAL STRIPS — Just insert a flat blade or scraper under one end of a form or strip after the pour or lift-up... it pops right off the floor slab! And if you need to correct a mistake in positioning the form or strip before the pour, removing and re-locating is a snap!
♦ EASY CLEAN-UP — Any left-over adhesive residue is easily removed with a 3M Scotch-brite™ Bristle Disc, a high pressure water sprayer, razor scraper or wire brush... all available from your MILCO distributor.
♦ ENVIRONMENTALLY FRIENDLY — MILCO Tilt-up & Precast Spray Adhesive contains no CFCs or Methylene Chloride and it's "South Coast Air Quality Management District (SCAQMD) Rule 1168", LEED™ and "MACT" compliant and HAPs-free.
MILCO Adjust-a-Trak
PENETRATION-FREE PANEL FORMING SYSTEM™

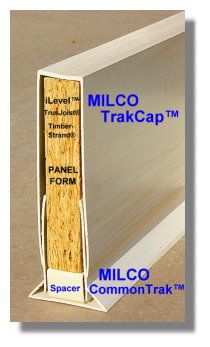

The MILCO Penetration-free Forming System includes MILCO Adjust-a-Trak™ "EdgeTrak"™, "CommonTrak"™, FormBlock™ panel support blocks and TrakCap™ height-adjustable PVC forms.
With the MILCO System, quick installation of common forms and edge forms is made with these easy steps...

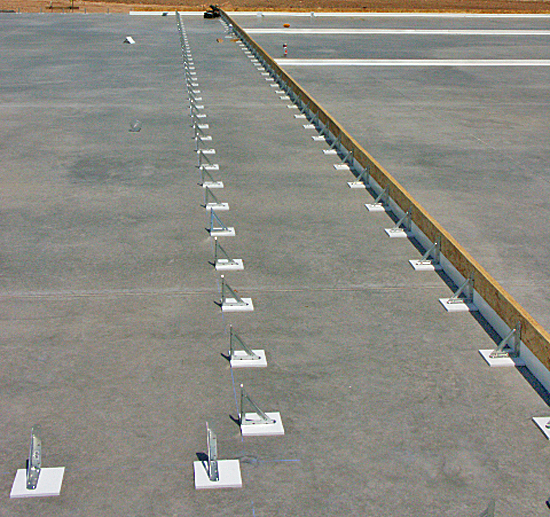

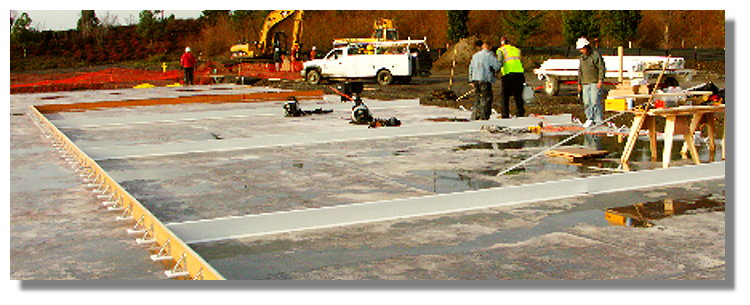

(1) For edge form installations, MILCO 6" x 6" PVC FormBlock™ panel support blocks are installed on 24" centers on the floor slab against the snap lines along the perimeter edges of the slab with MILCO Tilt-Up & Precast Spray Adhesive.

(2) A suitable panel form, such as standard height 1.25"-thick LSL or LDL panel form, is inserted into the EdgeTrak™ channel and then together fitted against the "L"-shaped 5" x 6" concrete form brackets that have been pre-attached to the MILCO FormBlocks™ .

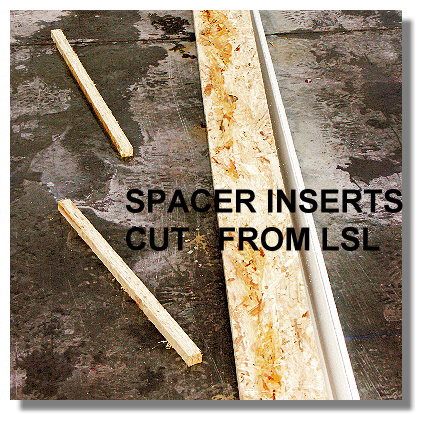

(3) To adjust panel height, a 1.25" - wide LSL, LDL or plastic spacer of pre-determined height is inserted into the Adjust-a-Trak™ channel before insertion of the panel form. The spacers are distributed along the Adjust-a-Trak™ as necessary to support the ends of each length of LSL panel form that will rest on top of the spacers.
 |
 |

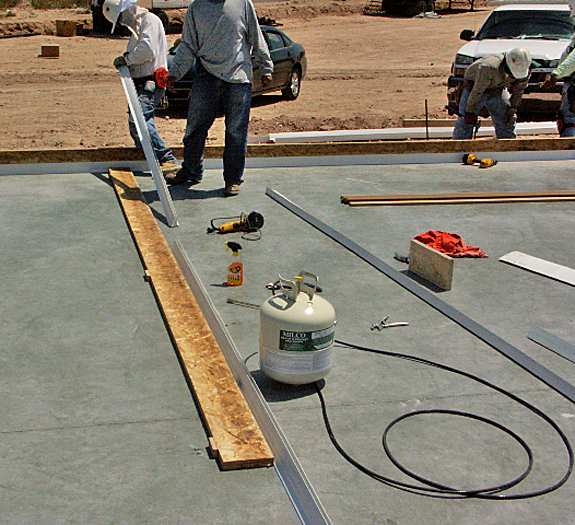

(4) CommonTrak™ sections are installed against a chalk line directly to the floor slab with MILCO Tilt-up Spray Adhesive. A suitable LSL or LDL panel form, is then inserted into the CommonTrak™ channel.

 |
 |

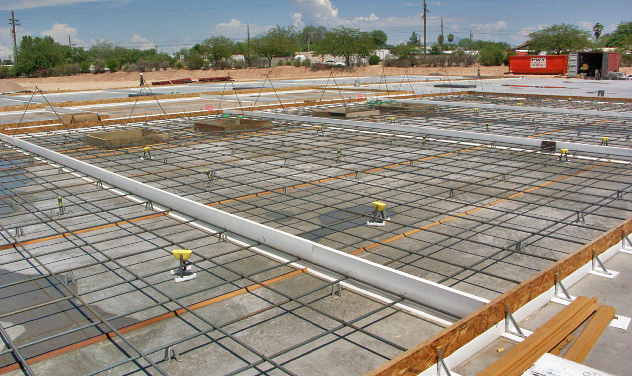

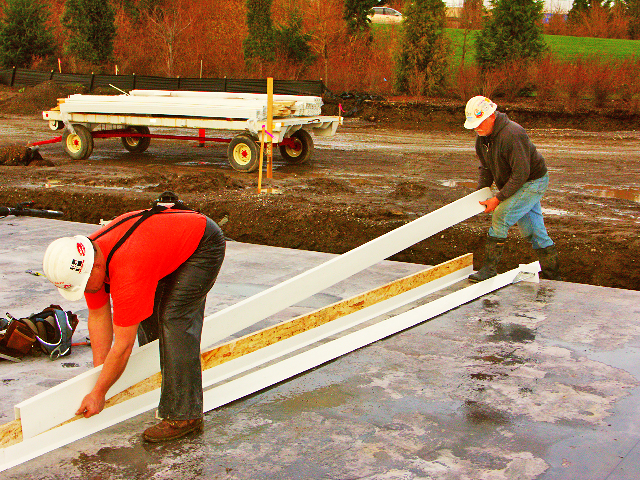

(5) Finally, MILCO TrakCap™ is placed over the previously inserted panel form to finish the installation.

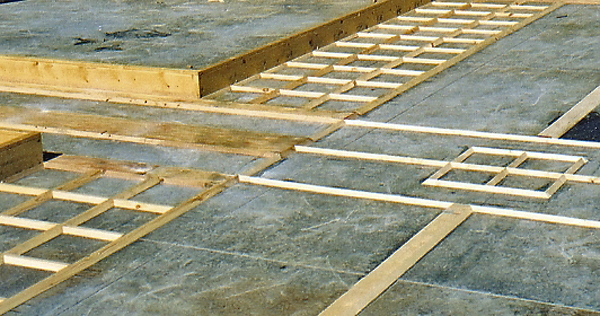

(6) Use MILCO Tilt-up & Precast Spray Adhesive to quickly and securely attach the reveal without damaging the floor surface.

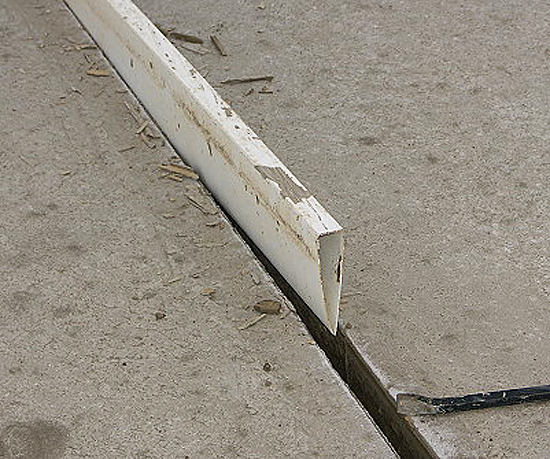

(7) Save on inventory! After the pour, easily remove the edge forms and common forms BEFORE lifting the panels and "leap-frog" them to the next set of panels under construction.

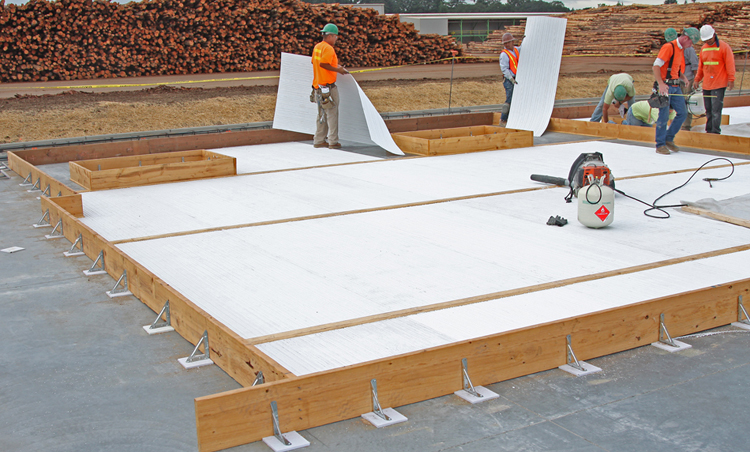

And... MILCO Tilt-up & Precast Spray Adhesive is the perfect solution for installing form liner.

MILCO Adjust-a-Trak The perfect solution!
