MILCO "Adjust-a-Trak" Penetration-free Forming System

MILCO -- THE PERFECT SOLUTION !    ORDER FROM YOUR DISTRIBUTOR TODAY

           ♦   MILCO adhesive-based
                     attachment system

           ♦   All-weather dependability

           ♦   Damage-free form, chamfer
                      and reveal installations

           ♦   Engineered for economy,
                     durability & precision

  		MILCO -- THE PERFECT SOLUTION !    ORDER FROM YOUR DISTRIBUTOR TODAY

PRECAST

MILCO -- THE PERFECT SOLUTION !   ORDER FROM YOUR DISTRIBUTOR TODAY

VIEWER NOTE: This Website is optimized for viewing with a monitor screen setting of 1024 x 728 px. resolution.


INTRODUCTION

            MILCO Concrete Concepts, LLC is pleased to introduce it's innovative and cost-effective Adjust-a-Trak Penetration-free Forming System for the precast concrete industry.

            The MILCO Adjust-a-Trak Penetration-free Forming System enables precasters to eliminate the need to use welding and/or penetrating devices to secure edge forms, cutouts, chamfer and reveal to casting bed surfaces.

            The principal components of the MILCO / TrusJoist® Forming System are MILCO Spray Adhesive, MILCO height-adjustable Adjust-a-Trak edge and common tracks, TrusJoist® TimberStrand® 1⅛" LSL form and blocking material and Weyerhaeuser Premium MDF for reveal and chamfer.

            The construction industry outsources and receives many advantages from prefabrication and precast concrete manufacturing, including things such as time and cost savings, due to enabling concurrent different production lines; increasing constructability, and reducing congestion on site due to changing from an uncontrollable work environment on site to a controllable one in factories. Precast concrete manufacturers (or "precasters") are involved in a construction project team as suppliers or subcontractors who produce, deliver, and elect precast components.

            Made-to-order precast production process consists of three main processes, namely product design, production planning, and shop floor manufacturing.   The precast manufacturing process mainly consists of six routine tasks: (1) mold assembling and oiling; (2) reinforcement cage, mosaic, tile (or other embedded parts) installing; (3) concrete placing; (4) curing; (5) mold stripping; and (6) product finishing.

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...

            The MILCO Spray Adhesive System implements a methodology to reduce customer lead-time for both made-to-stock and made-to-order precast products and results in a 2-to-1 cost savings for the precaster by dramatically reducing the overall manufacturing time and providing a more economical and secure method of temporarily attaching block-outs, reveal and other inserts during the manufacturing process.

            Specifically, MILCO Spray Adhesive allows precasters to: (1) eliminate the use of silicone calking — and its cumbersome removal process —  as a method of adhesion; (2) eliminate the use of two-sided tape and drilling and taping as a means for securing reveal; and (3) eliminate the necessity for tearing casting beds apart after each pour and rejoining them prior to the next job.

            MILCO Spray Adhesive also provides a convenient and cost-effective means to secure and join Styrofoam bocks and similar products to working surfaces.

            All System components were specifically selected for inclusion on the basis — as established by extensive field testing — that they were the best product that the commercial construction industry had to offer for the application at hand, and that they were 100% compatible with one another.

            The "MILCO System" for reducing surface penetrations involves the use of specific products — MILCO Spray Adhesive and MILCO Adjust-a-Trak — combined with specific application methods and the utilization of complementary construction products to assure optimum results in a wide variety of climatic conditions.

            For optimum dependability, MILCO recommends that its Spray Adhesive product be applied only in conjunction with compatible MILCO-tested and approved third-party-manufactured products, such as adhesive applicators, bond-breakers, form materials and surface cleaners.

            A list of MILCO-tested and approved products may be found under the "PRODUCT SPECIFICATIONS & APPLICATION INSTRUCTIONS" link located at the top of this page.

RETURN TO TOP OF PAGE

MILCO / TRUSJOIST®
PENETRATION-FREE FORMING SYSTEM

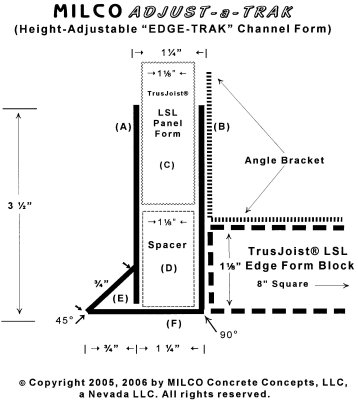

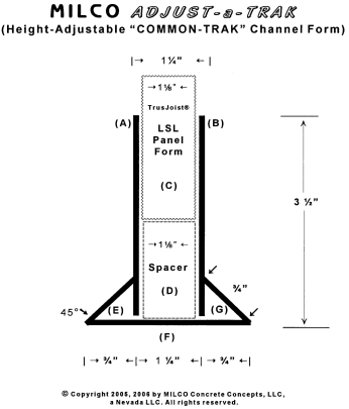

            The MILCO / TrusJoist® Penetration-free Forming System is based upon the use of MILCO Adjust-a-Trak "EdgeTrak" and "CommonTrak" height-adjustable PVC base forms (See diagrams below).

            With the MILCO / TrusJoist® System, quick installation of common forms and edge forms is made with these easy steps...

(1)     Adjust-a-Trak "EdgeTrak" or "CommonTrak" sections are installed against a chalk line on the casting bed floor with MILCO Spray Adhesive.

(2)      A 1" x 1½" - wide spacer of pre-determined height (See item "C" in the diagrams below) is inserted into the track's channel, resting on the bottom surface. The spacers are distributed along the Adjust-a-Trak as necessary to support the ends of each length of TrusJoist® LSL panel board that will rest on top of the spacers.

(3)     Following installation of the spacers, 1⅛" TrusJoist® TimberStrand® LSL panel forms of a pre-determined height are inserted into the Adjust-a-Trak channel and seated on top of the spacers.

(4)     For edge form installations, TrusJoist® TimberStrand® LSL 8" x 8" blocks are installed on 24" centers on the casting bed floor along the perimeter edges of the Adjust-a-Trak "EdgeTrak" with MILCO Tilt-Up Spray Adhesive and then "L"- brackets are screwed into place on the block and against the LSL and "EdgeTrak" to assure sufficient lateral strength.

That's it !



( NOTE: Diagrams not drawn to scale — for illustrative purposes only. )


RETURN TO TOP OF PAGE

THE ADJUST-A-TRAK ADVANTAGE


The MILCO / TrusJoist® Adjust-a-Trak Penetration-free Forming System offers precasters many advantages...


♦    ELIMINATES ALL SURFACE DAMAGE AND WARPING  AND DRAMATICALLY EXTENDS THE LIFE OF CASTING BEDS!    MILCO Spray Adhesive completely eliminates the need for all destructive methods of attaching forms and reveal to your casting beds, including drilling and welding.

♦    APPLIES TO ANY SURFACE.       MILCO Spray Adhesive works with all common casting bed surfaces, including steel, fiberglass and concrete.


MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...


♦    IT WON'T LET GO UNTIL YOU WANT IT TO — MILCO Spray Adhesive will stay on the job until your work is finished, come rain or shine, and... MILCO Spray Adhesive maintains full adhesion with the use of "stingers" and all air and hydraulic vibrators. Keeps your forms and strips and forms securely attached in cold, wet, humid or hot, dry weather for 30 days or more.

♦    APPLIES ON COLD OR HOT, DRY OR WET SURFACES — MILCO Spray Adhesive is not materially affected by moisture or humidity and it is suitable for most wet or dry-weather installations where slab temperatures can range from 33º F to 120º F.

♦    ENGINEERED WOOD ADVANTAGES — TimberStrand® LSL concrete panel form is workable and easy to handle. It is straight, strong, and consistent, and resists the common problems of bowing, twisting, and shrinking. Allows crews to set up and align form work with minimal splicing and labor.

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...

♦    TRUSJOIST® TIMBERSTRAND® LSL PANEL FORMS ARE PERFECT FOR FORMING — TimberStrand® LSL concrete panel form comes in long lengths and works perfectly with MILCO Adjust-a-Trak to match your panel form needs, minimizing the cost and time spent ripping or stacking forms to match panel depths.

♦    GIVE YOUR WORK A TRULY PROFESSIONAL APPEARANCE — Complex reveal designs are a breeze with MILCO's Spray Adhesive and Weyerhaeuser Premium MDF! The finished appearance of the decorative trim work is precise with well-defined edges.

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE... MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...

♦    WEYERHAEUSER "PREMIUM MDF" FOR REVEAL & CHAMFER — Stable, moisture-resistant surface, engineered for minimal expansion and fully compatible with MILCO Spray Adhesive.

♦    SAVES TIME & KEEPS YOUR EXPENSES DOWN — Compared to traditional attachment methods, overall set-up time and expense, including labor, is reduced by approximately ONE-HALF!  Get FIFTY- plus pours from each casting bed

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...

♦    EASY FORM & STRIP REMOVAL — Just insert a flat blade or scraper under one end of a form or strip after the pour or lift-up... it pops right off the floor slab! And if you need to correct a mistake in positioning the form or strip before the pour, removing and re-locating is a snap!

♦    NO CLEAN-UP MESS OR STAINS — Leaves very little residue, most of which sluffs off with UV exposure. Any left-over residue is easily removed with a high pressure water sprayer, scraper, wire brush or 3M™ Adhesive Remover Citrus Base. (View the 3M™ products distributed by MILCO under the "MILCO SYSTEM PARTNERS" tab at the top of this page.)

♦    ENVIRONMENTALLY FRIENDLY — Contains no CFCs or Methylene Chloride.


RETURN TO TOP OF PAGE

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...



Installation of edge forms is a breeze using
MILCO Spray Adhesive
and Weyerhaeuser / TrusJoist TimberStrand® LSL
blocks and edge forms!

MILCO -- THE PERFECT SOLUTION !      SCROLL DOWN TO FIND OUT MORE...


DETAIL OF SYSTEM COMPONENTS


The MILCO / TrusJoist® Penetration-free Forming System
includes the following quality products...


   MILCO SPRAY ADHESIVE

♦  An all-climate specialty contact adhesive manufactured by 3M™ to MILCO specifications that is specifically intended for adhering panel forms, chamfer and reveal to concrete slabs and casting beds.

♦  Available in 5-gallon (standard) and 2.5-gallon (special order) cylinders.


   MILCO Adjust-a-Trak "EdgeTrak" & "CommonTrak"

♦  MILCO's unique height-adjustable edge and common-form PVC track system allows standard height 1⅛"-thick TimberStrand® LSL form panels to be inserted and adjusted up to 2 inches in height — for example, two standard sizes can be used for any creating any form height between 6" and 10".

♦  Eliminates the need for specialty cutting of panel form widths (height).

♦  1⅛" track form width designed especially for use with 1⅛" TimberStrand® LSL Concrete Panel Form.

♦  Multiple re-use.

♦  Available in standard and extended lengths.

   3M™ ADHESIVE REMOVER CITRUS BASE

♦  The best all-purpose cleaner & adhesive remover there is.

♦  Non-toxic and environmentally-safe.

♦  Available in 24 oz aerosol cans, 1 gallon cans and 5 and 55-gallon drums.


    TimberStrand® LSL CONCRETE PANEL FORM
♦  A technologically superior laminated strand lumber ("LSL") product designed specifically for use with MILCO CommonTrak and EdgeTrak.
♦  Engineered to be extremely stable under all climatic conditions.
♦  Minimal expansion or contraction.
♦  Won't warp, deflect or swell.
♦  Multiple re-use.
♦  Available in 1⅛" x 18' or 36' lengths x 5", 6", 7", 7.5", 8" and 10" widths.

    TimberStrand® LSL EDGE FORM BLOCKS
♦  Use with common right-angle brackets to support LSL edge forms.
♦  Multiple re-use.
♦  Available in 1 " 8" x 8" standard size.

   SHOPWARE, INC. SPRAY APPLICATOR
♦  Precision engineered to assure ergonomic comfort and precise control of spray pattern with consistent, professional results.
♦  Anti-static and fully compatible with high-pressure delivery systems.
♦  Available with 10' or 20' (standard) hose.

    "PREMIUM MDF" FOR REVEAL & CHAMFER
♦  The perfect MDF product for tilt-up.
♦  Surface-treated to resist moisture-related expansion and absorption problems.
♦  Fully compatible with MILCO Spray Adhesive.
♦  Available in cut-to-size ¾" x 5' x 8' panels.


♦          ♦          ♦






CAREFULLY READ & FOLLOW
ALL PRECAUTIONS AND APPLICATION INSTRUCTIONS
BEFORE USING THIS PRODUCT!



CLICK HERE OR ON MENU ABOVE
FOR A PRINTABLE COPY OF
MILCO's
"PRODUCT APPLICATION INSTRUCTION SHEET"


NOTE — FOR QUESTIONS REGARDING
ON-SITE ADHESIVE APPLICATION WORK-IN-PROGRESS,
CALL BOB MILLER AT 1-360-903-5720.



I.    USER LICENSE AGREEMENT

      MILCO CONCRETE CONCEPTS, LLC is the owner, holder or licensee of one or more provisional patent application(s), patent application(s), patent(s) and/or copyright(s)related to the use of the MILCO SPRAY ADHESIVE product in the construction industry and the method(s) of application described and set forth in this Website, on any label, instruction sheet and elsewhere.  A one-time limited use license, the cost of which is included in the purchase price of the MILCO SPRAY ADHESIVE product, is granted to the product purchaser and/or end user of this adhesive product until such time as the adhesive product is spent.  Use of the MILCO SPRAY ADHESIVE product by purchaser and/or end user constitutes user's agreement to the terms and conditions recited in any label, instruction sheet, product literature and/or in any or warnings furnished with the MILCO SPRAY ADHESIVE product.  The use of any other spray adhesive product(s) in conjunction with the application method(s) expressed herein without the prior written consent of MILCO CONCRETE CONCEPTS, LLC is expressly forbidden and may constitute a violation of MILCO CONCRETE CONCEPTS, LLC's intellectual property rights.  For more information concerning this limited use license, contact MILCO CONCRETE CONCEPTS, LLC.

II.    LIMITED LIABILITY AGREEMENT

      IMPORTANT WARRANTY NOTICE:  neither MILCO CONCRETE CONCEPTS, LLC, nor TrusJoist®, a Weyerhaeuser Business,  make any warranties, express or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. User is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of application. LIMITATION OF REMEDIES AND LIABILITY:  If this  product is proved to be detective, the exclusive remedy, at MILCO's and/or TrusJoist's® option, shall be to refund the purchase price of, or to repair or replace the defective product.  MILCO CONCRETE CONCEPTS, LLC and/or TrusJoist® shall not otherwise be liable for any loss or damage, whether direct, indirect, special, incidental, or consequential, regardless of the legal theory asserted, including negligence, warranty or strict liability.

III.    EMPTY CYLINDER DISPOSAL
& RETURN PROGRAM

DO NOT DISPOSE OF EMPTY CYLINDERS
IN A GARBAGE CONTAINER OR LANDFILL

END-USER CUSTOMER:

       MILCO'S EMPTY CYLINDER RETURN PROGRAM:    Please use the original cardboard shipping container and label provided by MILCO.  Close cylinder valve and replace dust cap prior to return shipment.   Contact your distributor or MILCO to arrange for pickup of empty cylinders.  Freight is prepaid if returned in quantities of 9 or more 5-gallon cylinders per shrink-wrapped pallet.   If quantity is less than 9 cylinders, please contact your distributor for consolidation.  Contact your distributor or MILCO CONCRETE CONCEPTS, LLC for assistance or further information regarding pick-up.

MILCO DISTRIBUTORS:

      MILCO'S EMPTY CYLINDER RETURN PROGRAM:    Please use the original cardboard shipping container and label provided by MILCO.   Close all cylinder valves and replace dust caps prior to return shipment.   Please use all description designations used on the original bill of lading by MILCO CONCRETE CONCEPTS, LLC when preparing the bill of lading for return shipment.   Freight is prepaid if returned in quantities of 9 or more 5-gallon cylinders per shrink-wrapped pallet.   Contact MILCO CONCRETE CONCEPTS, LLC to arrange pick-up or for further information or assistance.

V.    PRODUCT WARNINGS

        DANGER!   EXTREMELY FLAMMABLE LIQUID AND VAPOR, MAY CAUSE FLASH FIRE.   CONTENTS UNDER PRESSURE.   MAY CAUSE EYE AND SKIN IRRITATION.   VAPOR OVEREXPOSURE MAY CAUSE RESPIRATORY TRACT IRRITATION AND CENTRAL NERVOUS SYSTEM DEPRESSION.   THIS PRODUCT IS INTENDED FOR OUTDOOR USE ONLY.


"SAFETY INFORMATION"

     CONTAINS:     acetone (67-64-1), cyclohexane (110-82-7), dimethyl ether (115-10-6); non-volatile components (NJTSRN 04499600-6133P), pentane (109-66-0), propane (74-98-6).   PRECAUTIONS: Keep away from heat, sparks, open flame and sources of static discharge.   Avoid breathing of vapors, mists or spray.   Provide ventilation adequate to control vapor concentration below recommended exposure limits and/or control spray or mist.     Do not use in confined areas or areas with little or no air movement. Avoid eye and skin contact. Intentional misuse by deliberately concentrating and inhaling the contents can be harmful or fatal.   Do not puncture or incinerate.   Do not store at temperatures above 120° F (49° C).   Keep out of the reach of children.   SUGGESTED FIRST AID:   EYE CONTACT:   Immediately flush eyes with plenty of water.   If irritation persists, get immediate medical attention.   SKIN CONTACT:   Wash skin with plenty of water.   If irritation persists, seek medical advice.   INHALATION:     Remove to fresh air.   If not breathing, give artificial respiration.   If breathing is difficult, seek medical advice.   INGESTION:   Do not induce vomiting.   Drink two glasses of water.   Seek medical advice.

      VOLATILE ORGANIC COMPOUNDS (VOCs) = 71%.   Contains non-photochemically reactive solvents.   Contains no methylene chloride, 1.1.1trichloride or CFCs.   Always consult applicable local air quality regulations which may regulate product use.

      For additional Product Safety and Health Information: See Material Safety Data Sheet (MSDS) or call 1-800-243-4630.  Product made in Canada to MILCO CONCRETE CONCEPTS, LLC specifications by 3M™
